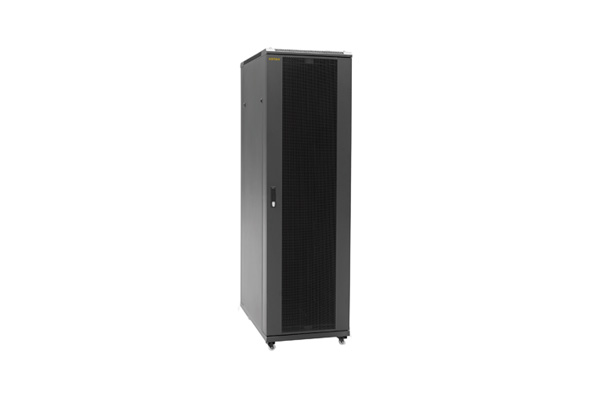

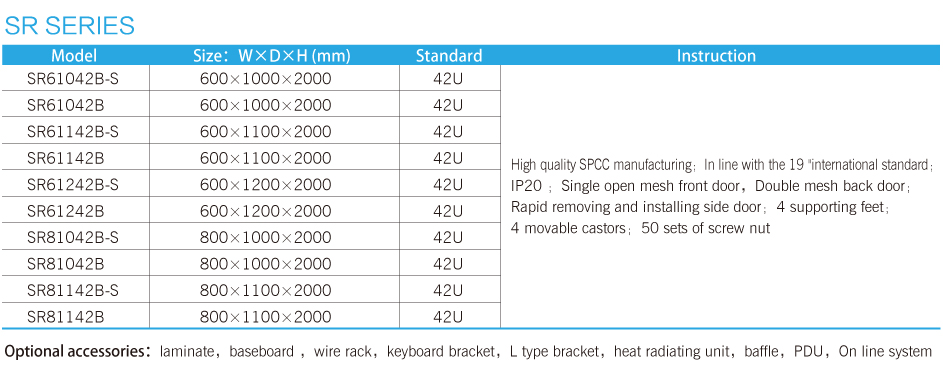

SR  Series

Maximum static load ：1300kg

Ventilation rate：75%

Product features

·  Convex type high-density mesh gate enhances the equipment ventilation, mechanical protection, external obervation of equipment operation status. Ventilation rate can be 75%.

·  Fine and decent appearance, precision size and crafted, which matches the user computer room perfectly.

·  Integrated assembly structure design, equipment installation U-colummn adjustable in the front and rear, to make easy installation of other distribution modules. Firm structure, with maximum static load upto 1300kg.

·  Can equiped with both casters and support feet.

·  With multiple close-able wiring channel in upper and lower part of the cabinet.

·  Efficient and solid cabinet parallel connection.

·  Both front and rear doors with advanced spin locks.

·  Side doors with spring buckling lock which can be easily installed without tools.

·  Range of optional accessories.

·  Meet standards of ANSI /AIARS-310-D、DIN41491、PARTE、IEC60297-2、DIN41494、PART7、GB/T3047.2-92, compatible with 19” international standard, metric standard, ETSL standard.

·  SPCC good quality cold-rolled

---

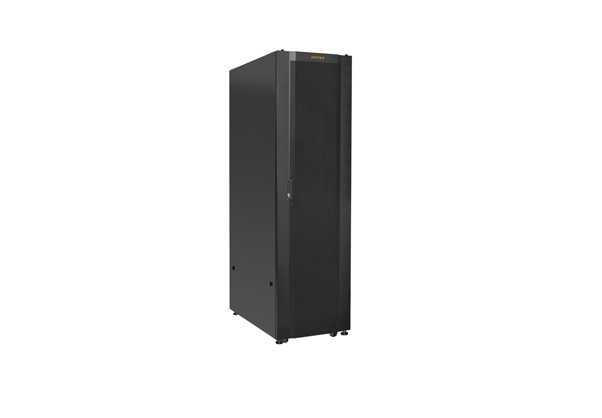

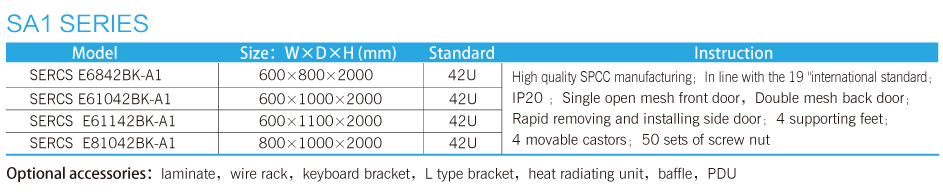

SA1 Series

Maximum static load ：850kg

Ventilation rate：65%

Product features

·  Arc high-density hexagonal mesh gate enhances the equipment ventilation, mechanical protection, external obervation of equipment operation status. Ventilation rate can be 65%.

·  Fine and decent appearance, precision size and crafted, which matches the user computer room perfectly.

·  Integrated assembly structure design, equipment installation U-colummn adjustable in the front and rear, to make easy installation of other distribution modules. Firm structure, with maximum static load upto 850kg.

·  Can equiped with both casters and support feet.

·  With multiple close-able wiring channel in upper and lower part of the cabinet.

·  Efficient and solid cabinet parallel connection.

·  Both front and rear doors with advanced spin locks.

·  Side doors with spring buckling lock which can be easily installed without tools.

·  Range of optional accessories.

·  Three fixed shelves inside the cabinet.

·  Meet standards of ANSI /AIA RS-310-D、DIN41491、PARTE、IEC60297-2、DIN41494、PART7、GB/T3047.2-92, compatible with 19” international standard, metric standard, ETSL standard.l SPCC good quality cold-rolled steel, with square hole piece thickness of 1.5mm, and others 1.2mm.

·  Surface treatment of degreasing, pickling, phosphating, electrostatic paint.

·  Standard black colour. Other colors can be customized.
